Half-fold fiber-glass Ramps Introduction
For proving the grass is not always greener on the other side of the fence, we decide to develop fiber-glass ramps. Our aim is to compete the product came from Japan and UK.
Let’s see how many first tier production line based in Taiwan. 200+ CM Left-Right Folding Ramp is too long. Moving and storage all not suit Taiwan family’s environment. Why nobody want to short the length to let moving and storage become easier?
Start from sketch, it took a long time when first time we discussed with material provider. Vendor promise the break force will up to 800 KG. So my requirement 300 KG to them is a piece of cake. It start bending when a 60 KG person stand on it. Escape from incident due to jump quickly. Try-and-error and one at a time. Spending time and money to discover which one is suitable able to meet our requirement.
Half-fold fiber-glass Ramps Specification
Today I went to the factory to develop a new door sill ramp and saw the master making a combined ramp. It consists of two sets of front and rear folding fiberglass ramps 250 cm in length. Similar scenes are commonplace. Taiwan has always had no shortage of high-end customers. Aluminum alloy 500 cm combined slope plate with at least 4 pieces connected in series

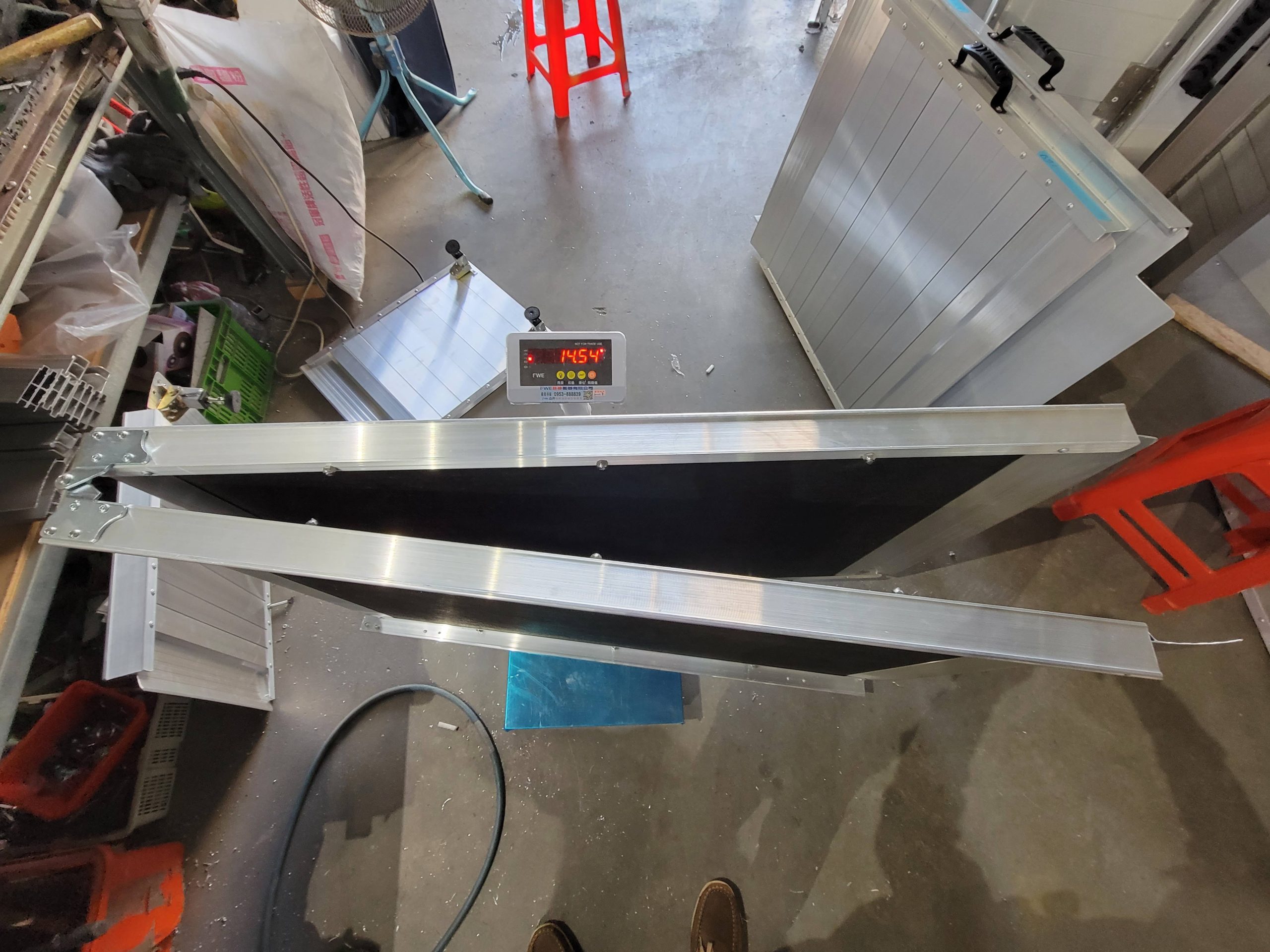

- By the way, the weight was measured at 14.54 kilograms, and the aluminum alloy material with the same length weighed 22 kilograms.
- 500 cm total weight: 29 kg fiberglass, 44 kg aluminum alloy
- A set of 315 cm long aluminum alloy material is equivalent to the weight of 500 cm fiberglass
- Origin: Made by Taiwan CHING-YUAN Health Business Ltd. The only ramp maker in Taiwan.
- Length: 306 CM
- Width : 72 CM
- Weight : 14.54 kg
- Capacity : 300 kg SGS report
- Material: Honeycomb fiber-glass board with reinforcement aluminum alloy support and head/tail board
- Support legs : 2
- Handle : Yes, portable and easy to carrying
- Wheels : Yes, it can move as a big suitcase
- There are countless anti-slip textures on the board surface, so you won’t be afraid of slipping when wet.
- Half-fold fiber-glass Ramps have upper and lower tongues covered with rubber strips to prevent toes from being scratched and to protect floor tiles.
- The sharp edges are chamfered to avoid scratches
- Each screw has an anti-rust coating
