Introduction to the soft X-threshold ramp board

X-threshold ramp have been selling abroad for a while. The grass is always greener on the other side of the fence. Taiwan Ramp experts tested this X-threshold ramp actual use of this commercially available aluminum checker plate/ We will also follow up on this. I will make videos of pushing wheelchairs in two other sizes so that everyone can see how soft they are.

Other products maybe sell you hope, but I will always tell you the worst-case scenario first.

Selling this X-threshold ramp is not because it is easy to use or durable. It’s same to another three sizes, materials, material thickness on the market. Except that the price is extremely cheap and consumers are informed of a bunch of product shortcomings in advance. Don’t buy it unless you can accept all its shortcomings.

Please read the complete text introduction below. Don’t just look at the price. This X-threshold ramp is made by cutting a 3 mm thick aluminum alloy checker plate on the market and adding two concave folds in the middle. It is small, medium and large. Three sizes, the pedaling feeling is very bad, and the load-bearing capacity is also very poor. The medium and large sizes cannot guarantee that they will not deform. This X-threshold ramp does not provide product liability insurance protection.

Much cheaper compared to other products on the market. You can buy it if you can accept all its shortcomings.
Made by Taiwan CHING-YUAN Health Business Ltd.

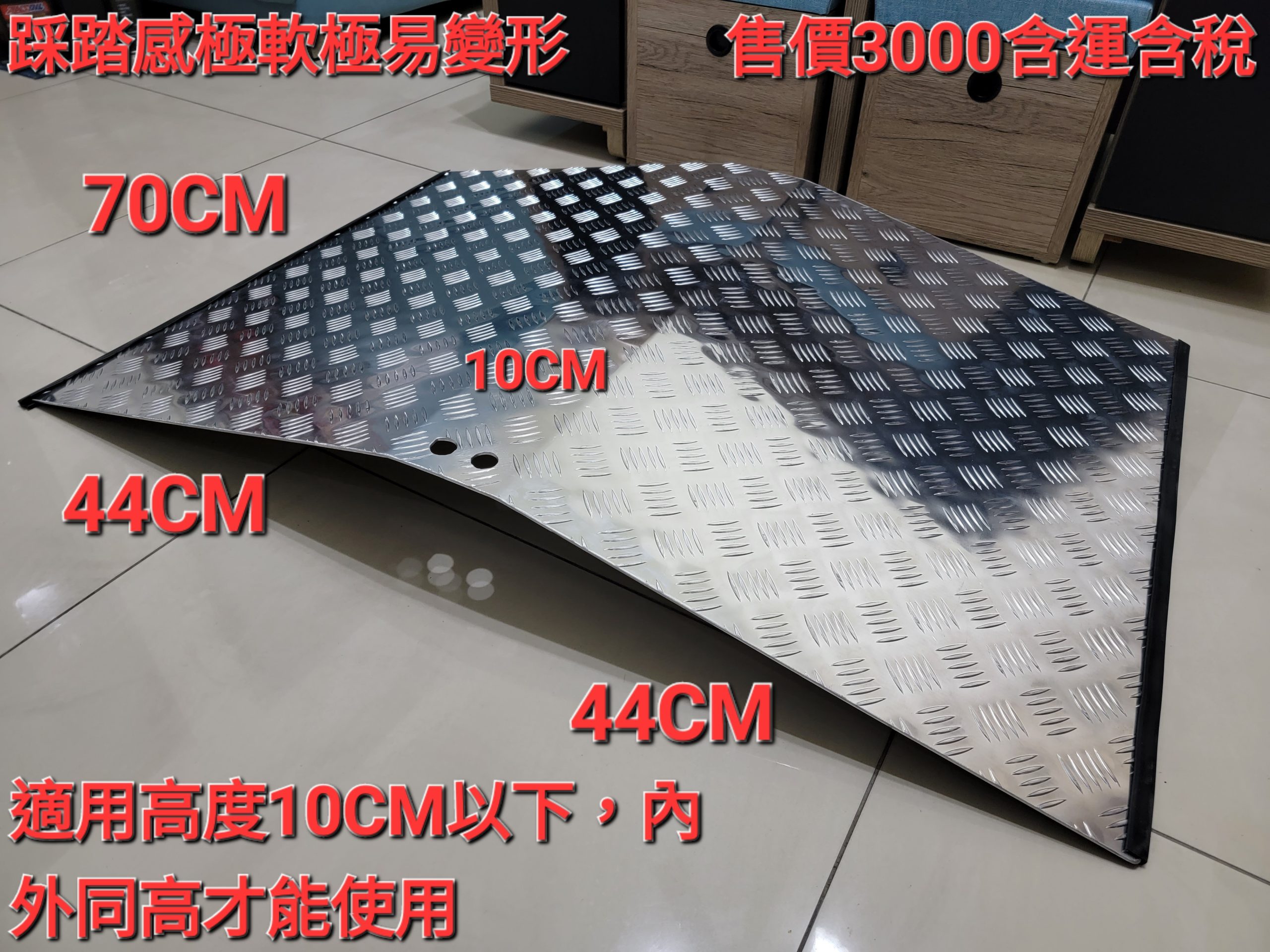

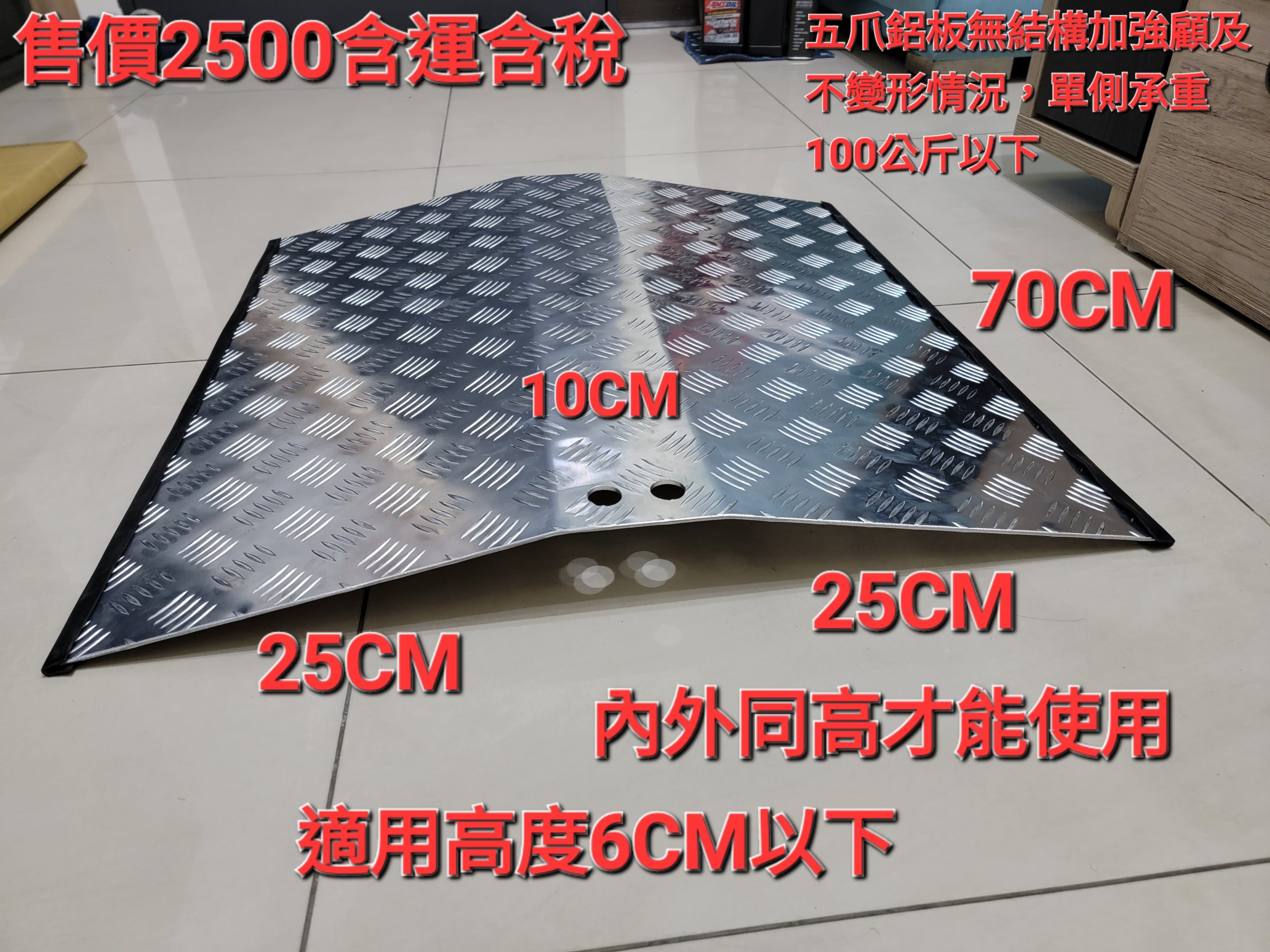

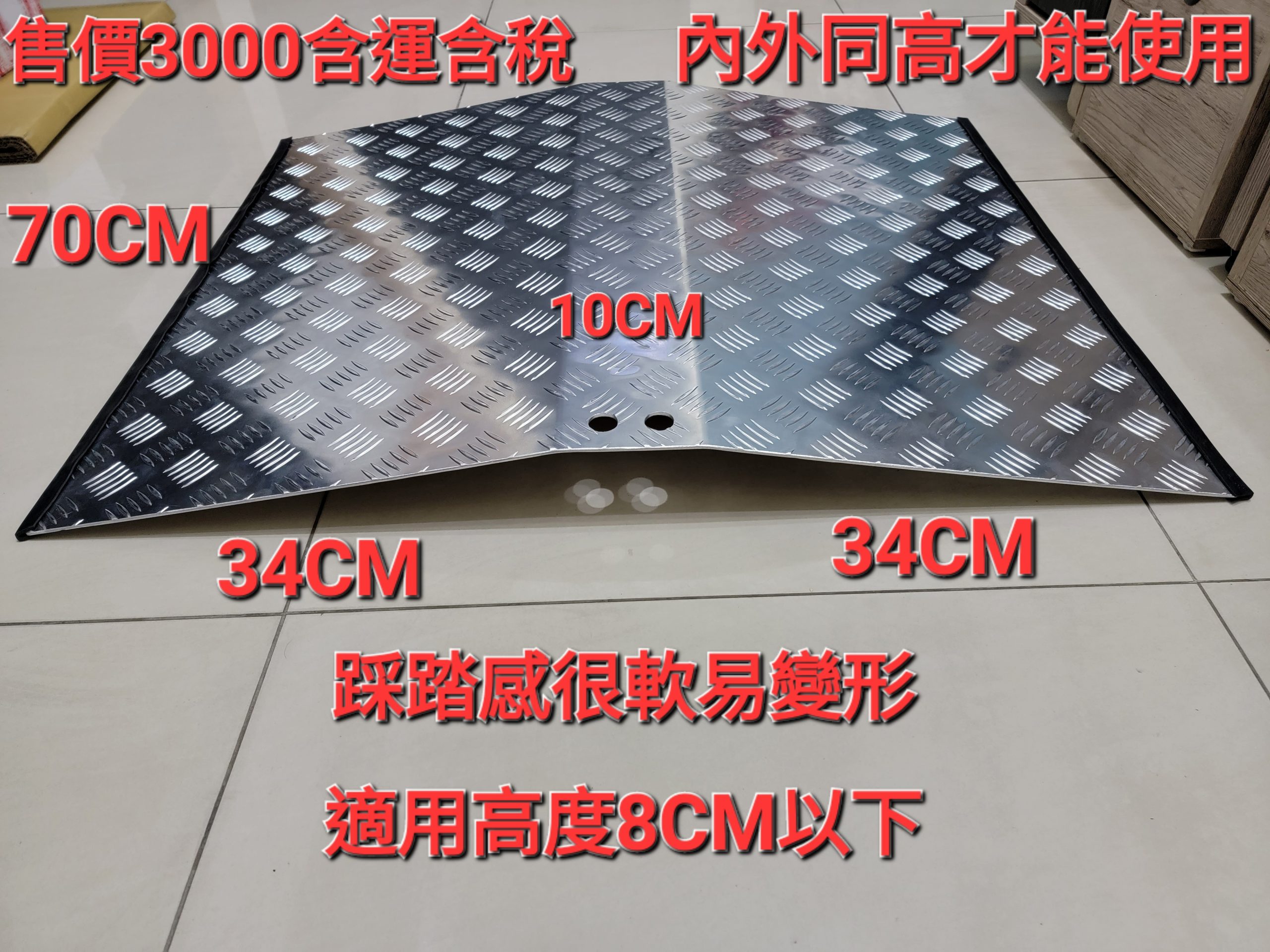

Size: Width 70 CM(both side) X-length(middle platform) 10 CM. Total length: 60 / 78 /98 CM the match threshold height 6 / 8 / 10 CM each side slope length 25 / 34 / 44 CM Weight: 4.24 KG / 5.18 KG / 6.48 KG
Capacity: the smallest size and single side under 100 KG. The other size will be dozens KG. The pedaling feeling is very bad. There is no guarantee that it will not deform
How soft is the 3 mm thick aluminum checker plate? Please watch this video: 不同鋁合金板承重測試
There are guide corners around the aluminum plate and the two portable holes to prevent scratching your hands.
The visual effect of the five-claw pattern is greater than the actual effect, and the anti-slip effect is average
It is very likely that when the wheelchair is pushed forward, it will hit the threshold slope and push the entire piece forward. If it is used for walking, the entire piece may slip and shift….Attention Please
The concave angle of the ramps on both sides is only applicable when the inner and outer heights are the same. If the inner and outer floors are not at the same level, it is very likely that one side will not be able to reach the ground. You need to brute force yourself to concave the angle. We will not help you concave the angle.
Since the concave angles of the ramps on both sides are fixed, taking the smallest size as an example, the corresponding height is 6 cm inside and outside. If the height of the threshold is less than 6 cm, the 10 cm span of the concave slope plate cannot be tightly attached. There will be a big gap in the threshold, and the wheelchair will only close when it is pressed up.
